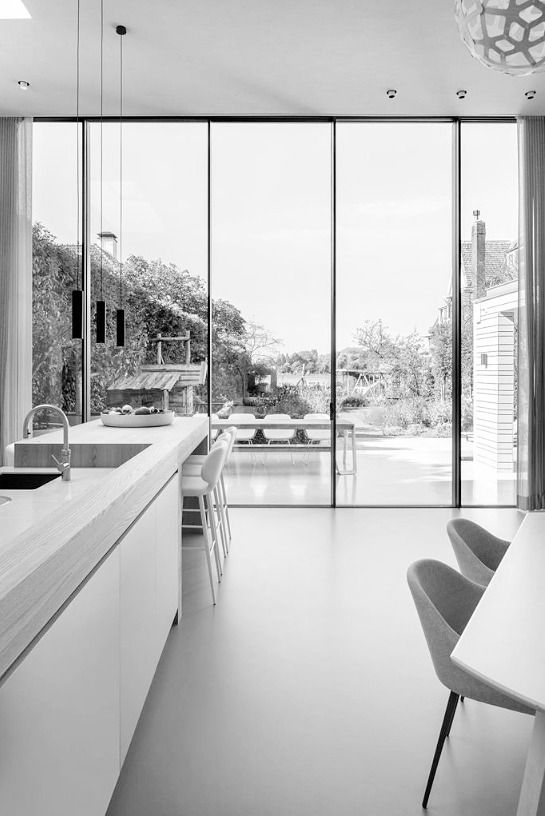

ORAMA 124AS.f

Orama Omicron is a double glazed sliding door with a 24mm sash width. The perfect combination of minimalism and performance. Despite the small dimensions of the profiles, Orama 124AS.f Minimal Frames can slide 800 kgr. The height of each vent can reach 3.0 m with small labyrinth (24mm) and up to 6.5 m with the large labyrinth (30mm). Orama have managed to reduce the labyrinth width to just 24mm, achieving air resistance Class C5 at the same time. The hook's depth can be limited to 124mm in total, creating a minimal effect from whatever the angle. Instead of having the rollers on the frame, we have placed our high-quality stainless steel rollers on the vent, making any maintenance quick and easy. Highly thermally insulated sliding and lift-and-slide system with perfect watertightness, and outstanding sound reduction. Based on single, double and triple-track outer frames, Orama creates large opening widths with outstanding user comfort – perfect for use as a high-quality system solution in commercial projects and luxury residential properties.



Orama 124AS.f24 is a thermally insulated aluminium sliding door system with 124 mm basic depth and sash width of 24mm. 6063-T6 high quality aluminum profile extrusion.

EPDM weather seal strips. Semperit (Germany made) Aviation grade EPDM gaskets are an outstanding long-term seal. They have many advantages: excellent acoustic and thermal insulation, high elasticity and long-term elastic recovery, UV-resistant, ozone-resistant, weatherproof, no contact discoloration on coatings, and elastic and impermeable at temperature ranges from -35 °C to +100 °C.

Standard glazing for Orama 124AS.f24 is 5mm Saint-Gobain Planitherm Ultra N II / ARG90 / CLR / ARG90 / Planitherm Ultra N II (5mm/5mm/5mm) 39mm, with industry-leading Ködispace 4SG TPS spacer. Planitherm is high transmission range, high-performance, low-emissivity products, offering the lowest center pane U- value in the market thus providing excellent thermal insulation for the most demanding of glass specifications. Renowned for its extremely neutral appearance Planitherm very effectively reflects long-wave heat radiation back into a room, thereby minimizing heat loss through a window while also maximizing solar heat gain and natural light transmission. Unlike traditional thermoplastic spacers, Ködispace 4SG TPS spacer's reactive butyl forms a chemical bond both with the silicone secondary sealing used in glass façades and with the glass surface itself. In this way, Ködispace 4SG bonds solidly with the pane and ensures long-term gas impermeability. Ködispace 4SG TPS has the best Psi and Ug values. It has the lowest failure rate in the industry against between-the-glass condensation and fogging and is why GlasFëns uses it as a standard spacer. It's an up-charge with other window suppliers but here it's standard.

Standard thermal insulation strut is polymer nylon 66 made in Germany. Polyamides offer high levels of heat resistance, stiffness and high mechanical stability for a durable solution. Without insulation, aluminum windows, doors, and facades transfer heat, leading to a huge loss of energy. This is where our high-precision insulating profiles come into play. Connecting aluminum panels of any kind, while keeping mechanical performance at the highest level, they prevent direct exchange of heat and cold – and create what is known as the “thermal break”. The result: minimized thermal conductivity, optimized efficiency, and a better energy footprint. Our aluminum window products with polyamide thermal breaks can save energy amounting to 85% and reducing CO2-emissions considerably.
