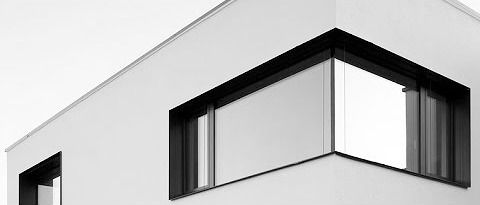

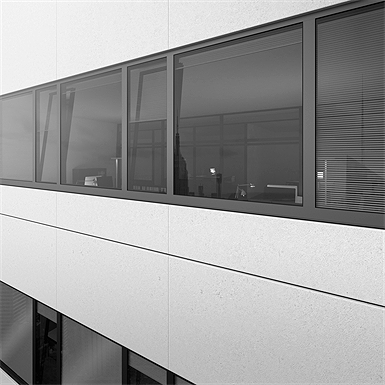

SCHÜCO AWS 120 CC.SI

Optimised Schüco composite window with a high degree of integrated comfort and climate functions – the ideal complete package for window modernisation with passive house certification. The Schüco AWS 120 CC.SI composite window together with the integrated Schüco Sun Shading CCB is a complete system for energy-efficient building solutions. It offers passive house-certified thermal insulation and sun shading that can be used in any weather. With a barely visible louvre blade stack when the Venetian blind is raised and no light penetrating at the sides when the Venetian blind is lowered, Schüco AWS 120 CC.SI meets high design requirements with its internal and external appearance. In addition to the standard design option, Schüco also offers a design with a structural glazing look. Increased sound reduction (up to sound reduction class 6) – by means of the double centre gasket level and the multi-pane principle – means they are ideal for use in urban areas. The properties of the Schüco AWS 120 CC.SI offer user-friendly living and working environments.



AWS 120 CC.SI is a thermally insulated aluminium window system with 120 mm basic depth. 6063-T6 high quality aluminum profile extrusion.

Schüco proprietary (Roto & GU) hardware, locks and hinges made in Germany are standard on this window. The biggest benefit that a multipoint locking system brings to a door or window is the added security and improved occupant sense of safety. Multipoint systems can also improve weatherstripping performance and offer a more secure and weather resistant seal. This is one of the reasons multipoint locking systems have been embraced in Europe, where more stringent energy code requirements are in place. Of course, multipoint locks are also recognised by insurance companies as offering enhanced and improved security to homes and businesses. High strength and security from multipoint locking on all 4 sides. Airtight and weather-sealed with continuous gasketing on all 4 sides. Multipoints also help prevent warping, even for very tall sashes.

Four weather seal strips. Semperit (Germany made) Aviation grade EPDM gaskets are an outstanding long-term seal. They have many advantages: excellent acoustic and thermal insulation, high elasticity and long-term elastic recovery, UV-resistant, ozone-resistant, weatherproof, no contact discoloration on coatings, and elastic and impermeable at temperature ranges from -35 °C to +100 °C.

Aluminum powder coat by Tiger. Tiger Drylac® Series 75 fluoropolymer hyper durable powder coating with superior weatherability for architectural applications. Drylac® Series 75 is a series of hyper-durable powder coatings designed to meet the requirements of AAMA2605-05, the most demanding architectural specification in the world.

Standard glazing for AWS 120 CC.SI is 5mm Saint-Gobain Planitherm Ultra N II / ARG90 / CLR / ARG90 / Planitherm Ultra N II (5mm/5mm/5mm) 39mm, with industry-leading Ködispace 4SG TPS spacer. Planitherm is high transmission range, high-performance, low-emissivity products, offering the lowest center pane U- value in the market thus providing excellent thermal insulation for the most demanding of glass specifications. Renowned for its extremely neutral appearance Planitherm very effectively reflects long-wave heat radiation back into a room, thereby minimizing heat loss through a window while also maximizing solar heat gain and natural light transmission. Unlike traditional thermoplastic spacers, Ködispace 4SG TPS spacer's reactive butyl forms a chemical bond both with the silicone secondary sealing used in glass façades and with the glass surface itself. In this way, Ködispace 4SG bonds solidly with the pane and ensures long-term gas impermeability. Ködispace 4SG TPS has the best Psi and Ug values. It has the lowest failure rate in the industry against between-the-glass condensation and fogging and is why GlasFëns uses it as a standard spacer. It's an up-charge with other window suppliers but here it's standard.

Standard thermal insulation strut is polymer nylon 66 made in Germany. Polyamides offer high levels of heat resistance, stiffness and high mechanical stability for a durable solution. Without insulation, aluminum windows, doors, and facades transfer heat, leading to a huge loss of energy. This is where our high-precision insulating profiles come into play. Connecting aluminum panels of any kind, while keeping mechanical performance at the highest level, they prevent direct exchange of heat and cold – and create what is known as the “thermal break”. The result: minimized thermal conductivity, optimized efficiency, and a better energy footprint. Our aluminum window products with polyamide thermal breaks can save energy amounting to 85% and reducing CO2-emissions considerably.
